Surface winding type high speed slitting machine with servo motor drive. Unwinding width 600 / 1300 / 1800 mm, slitting speed 400 m/min, unwind Φ1200 mm, rewind Φ600 mm, min slit width 3-10 mm.

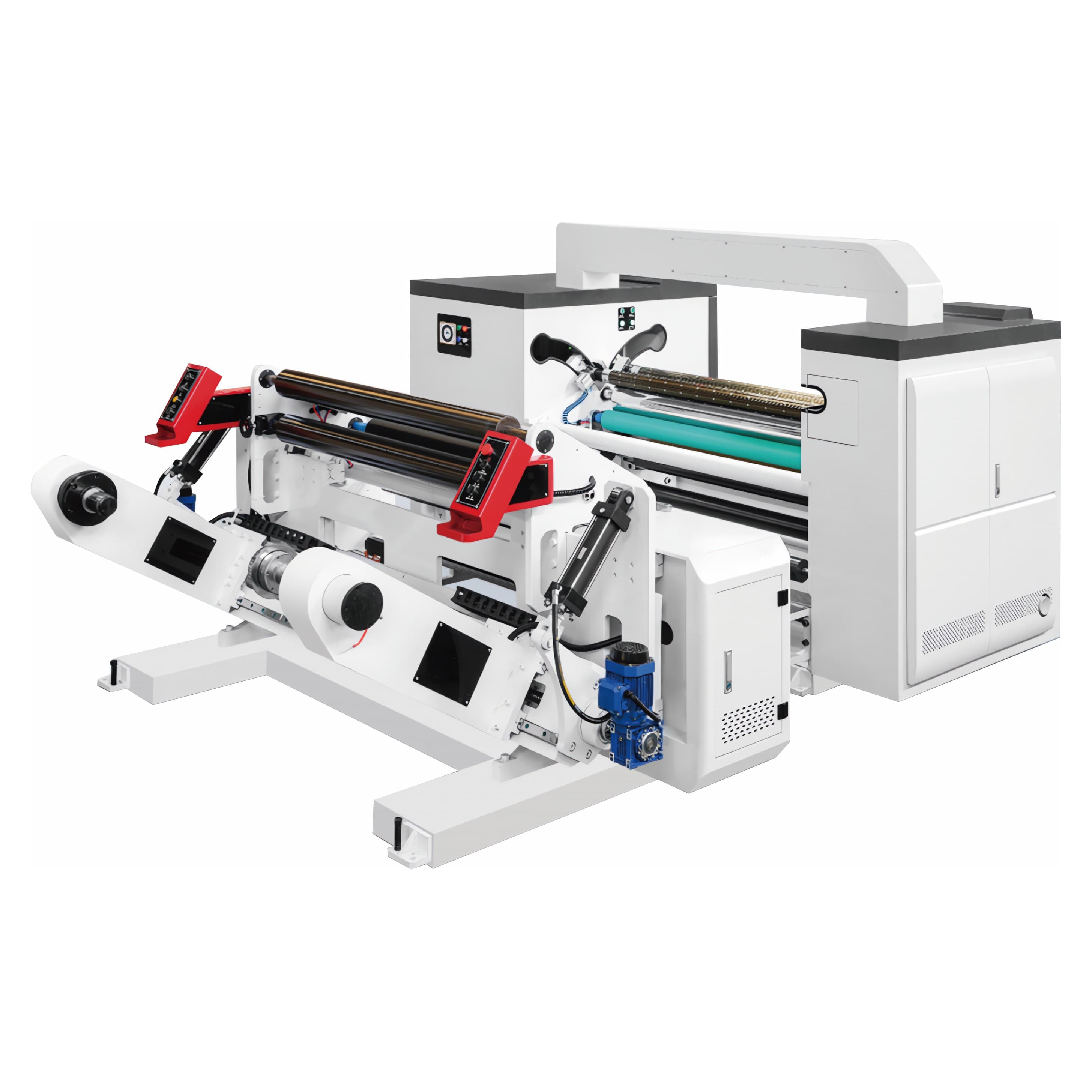

JYQF Surface Winding Type High Speed Slitting MachineSurface winding type high speed slitting machine with servo motor drive. Unwinding width 600 / 1300 / 1800 mm, slitting speed 400 m/min, unwind Φ1200 mm, rewind Φ600 mm, min slit width 3-10 mm.Applicable materials: Roll materials (film / paper)Technical parameters:Model: JYQF800 | JYQF1300 | JYQF1800Slitting speed: 400 m/min | 400 m/min | 400 m/minUnwinding width: 600mm | 1300mm | 1800mmMin. slitting width: 3mm | 5mm | 10mmUnwinding diameter: Φ1200mm | Φ1200mm | Φ1200mmRewinding diameter: Φ600mm | Φ600mm | Φ600mmMain servo motor power: 4kW | 5.5kW | 5.5kWRewinding servo motor power: 2×3kW | 2×4kW | 2×4kWUnwinding servo motor power: 4kW | 5.5kW | 7.5kWManufacturer: Wenzhou Jinyi Machinery Co., Ltd. (Brand: JINYI), Ruian, Zhejiang, China.Brand: JINYIPlace of origin: Zhejiang, ChinaKeywords: surface winding slitting machine; servo slitter rewinder; high speed slitting machine
| Slitting speed | 400 m/min |
|---|---|
| Unwinding width | JYQF800: 600mm | JYQF1300: 1300mm | JYQF1800: 1800mm |
| Min. slitting width | JYQF800: 3mm | JYQF1300: 5mm | JYQF1800: 10mm |
| Unwinding diameter | Φ1200mm |
| Rewinding diameter | Φ600mm |
| Main servo motor power | JYQF800: 4kW | JYQF1300: 5.5kW | JYQF1800: 5.5kW |
| Rewinding servo motor power | JYQF800: 2×3kW | JYQF1300: 2×4kW | JYQF1800: 2×4kW |
| Unwinding servo motor power | JYQF800: 4kW | JYQF1300: 5.5kW | JYQF1800: 7.5kW |
| Variants | JYQF800, JYQF1300, JYQF1800 |
Automatic online inspection and rewinding machine for printed BOPP, PET, PVC, CPP rolls. Width 1300 mm, max inspection speed 400 m/min, unwind/rewind Φ800 mm, EPC accuracy ±0.2 mm, automatic image scanning defect detection.
High speed slitting machine for BOPP, PET, CPP, PVC, PE and other film rolls. Width 1300 mm, max speed 600 m/min, unwind Φ800 mm, rewind Φ600 mm, min slit width 30 mm, material thickness 0.012-0.4 mm.
Compact label slitting machine. Max web width 320 / 520 / 620 mm, slitting speed 80 m/min, max unwind/rewind diameter 500 mm, slitting precision ±0.10 mm, 220 V power supply.
