High speed slitting machine for BOPP, PET, CPP, PVC, PE and other film rolls. Width 1300 mm, max speed 600 m/min, unwind Φ800 mm, rewind Φ600 mm, min slit width 30 mm, material thickness 0.012-0.4 mm.

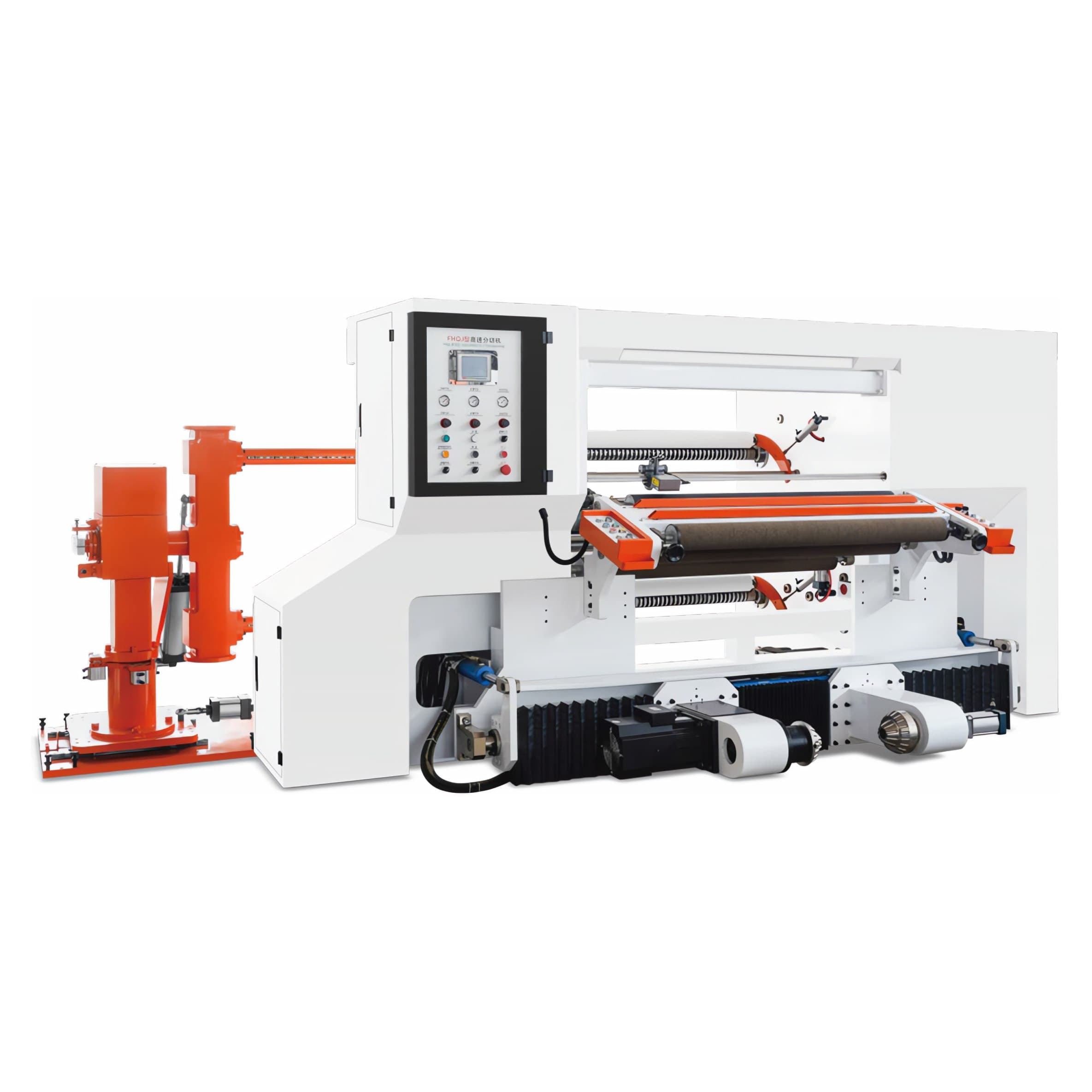

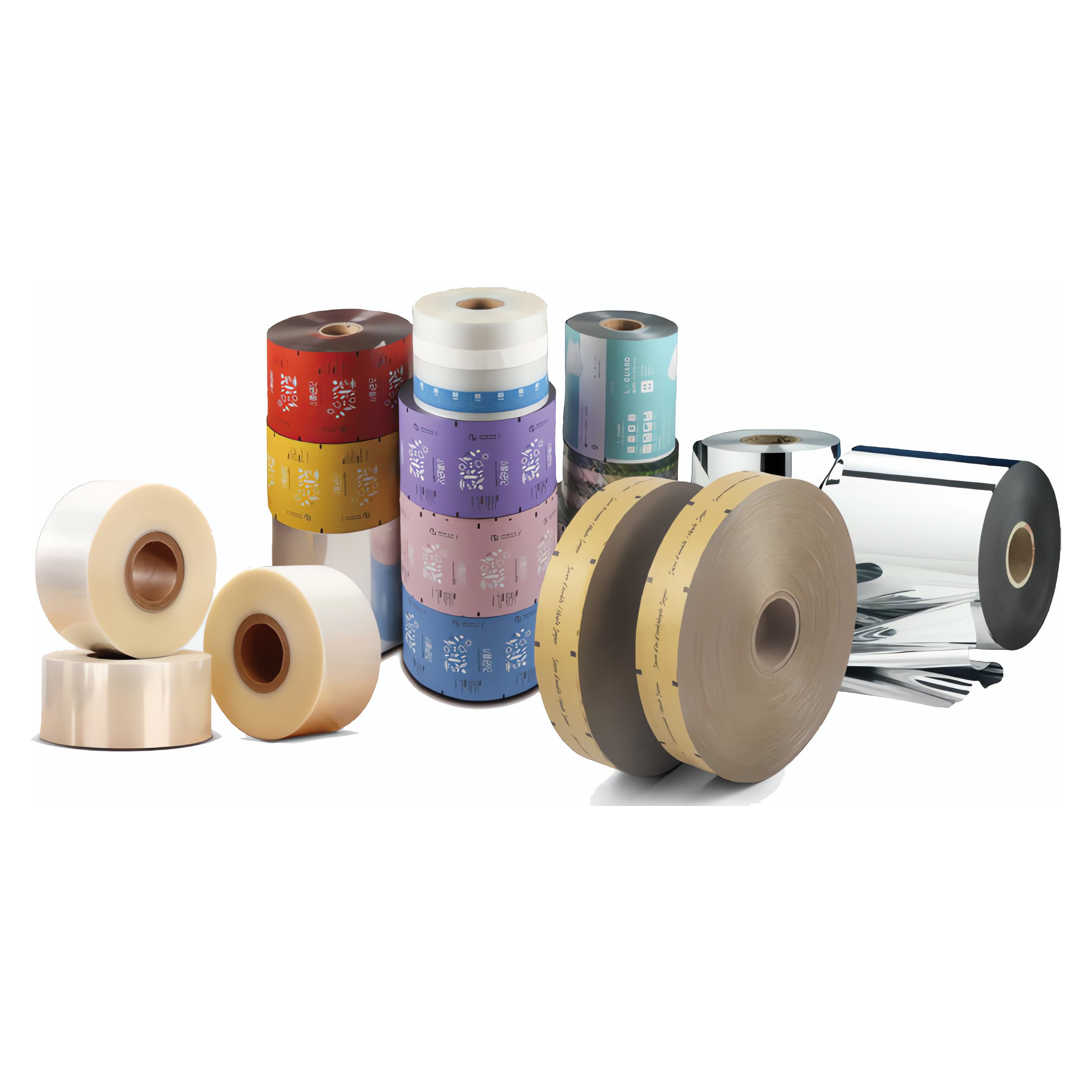

JYQJ-A High Speed Slitting MachineHigh speed slitting machine for BOPP, PET, CPP, PVC, PE and other film rolls. Width 1300 mm, max speed 600 m/min, unwind Φ800 mm, rewind Φ600 mm, min slit width 30 mm, material thickness 0.012-0.4 mm.Applicable materials: BOPP, PET, CPP, PVC, PE and other film rollsMain features:1. Imported PLC control with centralized touch screen operation.2. Shaftless hydraulic automatic loading on the unwind; automatic pushing and flip-over unloading on the rewind.3. Whole machine driven by four servo motors, with built-in edge trim collector.Technical parameters:Model: JYQJ-A1300Max. raw material width: 1300mmMax. unwinding diameter: Φ800mmMax. machine speed: 600 m/minMax. rewinding diameter: Φ600mmMin. slitting width: 30mmError correction (EPC) accuracy: ±0.2mmRaw material thickness: 0.012-0.4mmMachine weight: 5000kgTotal power: 17kWOverall dimensions (L×W×H): 2500×4800×1900mmManufacturer: Wenzhou Jinyi Machinery Co., Ltd. (Brand: JINYI), Ruian, Zhejiang, China.Key features:1. Imported PLC control with centralized touch screen operation.2. Shaftless hydraulic automatic loading on the unwind; automatic pushing and flip-over unloading on the rewind.3. Whole machine driven by four servo motors, with built-in edge trim collector.Brand: JINYIPlace of origin: Zhejiang, ChinaKeywords: high speed slitting machine; film slitter rewinder; servo slitting rewinding machine
| Max. raw material width | 1300mm |
|---|---|
| Max. unwinding diameter | Φ800mm |
| Max. machine speed | 600 m/min |
| Max. rewinding diameter | Φ600mm |
| Min. slitting width | 30mm |
| Error correction (EPC) accuracy | ±0.2mm |
| Raw material thickness | 0.012-0.4mm |
| Machine weight | 5000kg |
| Total power | 17kW |
| Overall dimensions (L×W×H) | 2500×4800×1900mm |
| Variants | JYQJ-A1300 |
