Automatic online inspection and rewinding machine for printed BOPP, PET, PVC, CPP rolls. Width 1300 mm, max inspection speed 400 m/min, unwind/rewind Φ800 mm, EPC accuracy ±0.2 mm, automatic image scanning defect detection.

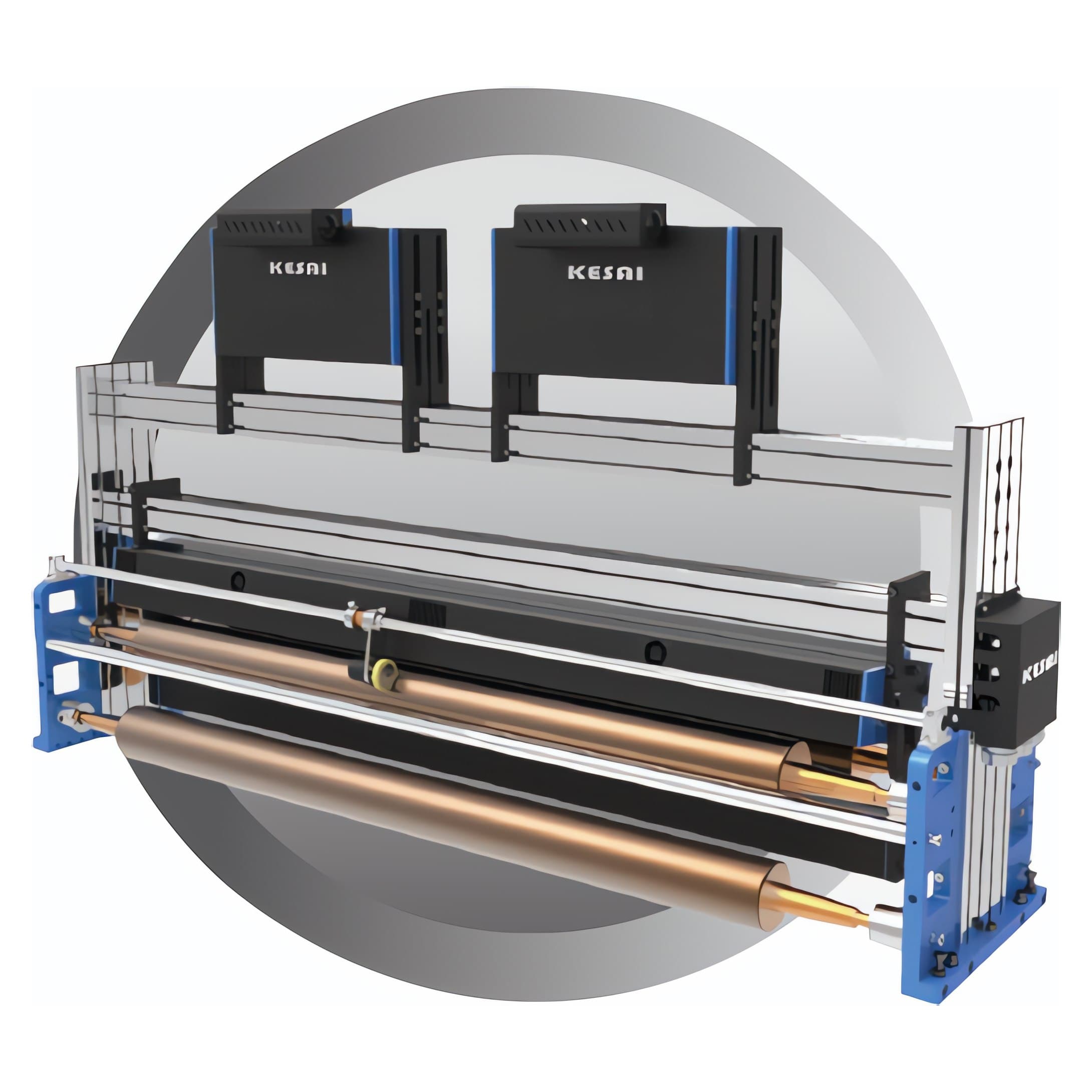

JYYB Automatic Online Inspection and Rewinding MachineAutomatic online inspection and rewinding machine for printed BOPP, PET, PVC, CPP rolls. Width 1300 mm, max inspection speed 400 m/min, unwind/rewind Φ800 mm, EPC accuracy ±0.2 mm, automatic image scanning defect detection.Applicable materials: BOPP, PET, PVC, CPP and other roll materialsMain features:1. Imported PLC control with centralized touch screen operation.2. Vacuum suction film splicing platform.3. Shaftless air-chuck unwind and rewind with hydraulic lifting for easy loading and unloading.4. Automatic image scanning system checks and analyses defects automatically.Technical parameters:Model: JYYB 1300Max. raw material width: 1300mmMax. unwinding diameter: Φ800mmMax. rewinding diameter: Φ800mmMax. inspection speed: 400 m/minError correction (EPC) accuracy: ±0.2mmMachine weight: 4000kgTotal power: 16kWOverall dimensions (L×W×H): 2550×2700×2250mmManufacturer: Wenzhou Jinyi Machinery Co., Ltd. (Brand: JINYI), Ruian, Zhejiang, China.Key features:1. Imported PLC control with centralized touch screen operation.2. Vacuum suction film splicing platform.3. Shaftless air-chuck unwind and rewind with hydraulic lifting for easy loading and unloading.4. Automatic image scanning system checks and analyses defects automatically.Brand: JINYIPlace of origin: Zhejiang, ChinaKeywords: inspection rewinding machine; film defect inspection machine; printed film doctor rewinder
| Max. raw material width | 1300mm |
|---|---|
| Max. unwinding diameter | Φ800mm |
| Max. rewinding diameter | Φ800mm |
| Max. inspection speed | 400 m/min |
| Error correction (EPC) accuracy | ±0.2mm |
| Machine weight | 4000kg |
| Total power | 16kW |
| Overall dimensions (L×W×H) | 2550×2700×2250mm |
| Variants | JYYB 1300 |
High speed slitting machine for BOPP, PET, CPP, PVC, PE and other film rolls. Width 1300 mm, max speed 600 m/min, unwind Φ800 mm, rewind Φ600 mm, min slit width 30 mm, material thickness 0.012-0.4 mm.
Compact label slitting machine. Max web width 320 / 520 / 620 mm, slitting speed 80 m/min, max unwind/rewind diameter 500 mm, slitting precision ±0.10 mm, 220 V power supply.
Surface winding type high speed slitting machine with servo motor drive. Unwinding width 600 / 1300 / 1800 mm, slitting speed 400 m/min, unwind Φ1200 mm, rewind Φ600 mm, min slit width 3-10 mm.
