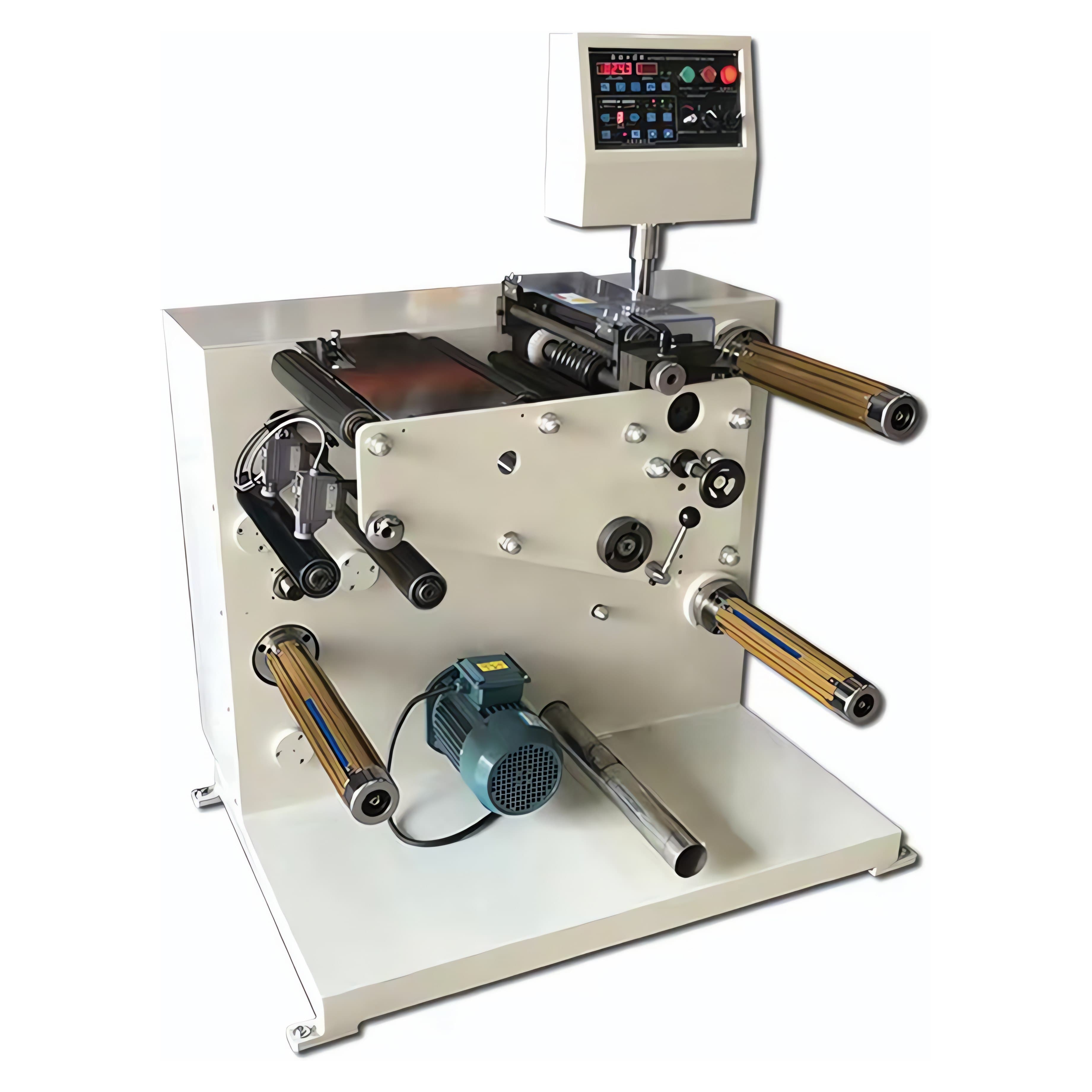

Compact label slitting machine. Max web width 320 / 520 / 620 mm, slitting speed 80 m/min, max unwind/rewind diameter 500 mm, slitting precision ±0.10 mm, 220 V power supply.
JYQB Label Slitting MachineCompact label slitting machine. Max web width 320 / 520 / 620 mm, slitting speed 80 m/min, max unwind/rewind diameter 500 mm, slitting precision ±0.10 mm, 220 V power supply.Applicable materials: Label rollsTechnical parameters:Model: JYQB320 | JYQB520 | JYQB620Slitting speed: 80 m/min | 80 m/min | 80 m/minMax. web width: 320mm | 520mm | 620mmMax. unwinding diameter: 500mm | 500mm | 500mmMax. rewinding diameter: 500mm | 500mm | 500mmSlitting precision: ±0.10mm | ±0.10mm | ±0.10mmTotal power: 1.25kW | 2.0kW | 2.0kWVoltage: 220V+10% | 220V+10% | 220V+10%Dimensions (L×W×H): 1200×900×1400mm | 1200×1100×1400mm | 1200×1200×1400mmWeight: approx. 400kg | approx. 500kg | approx. 550kgManufacturer: Wenzhou Jinyi Machinery Co., Ltd. (Brand: JINYI), Ruian, Zhejiang, China.Applicable materials: Label rollsBrand: JINYIPlace of origin: Zhejiang, ChinaKeywords: label slitting machine; small slitter rewinder; narrow web slitting machine
| Slitting speed | 80 m/min |
|---|---|
| Max. web width | JYQB320: 320mm | JYQB520: 520mm | JYQB620: 620mm |
| Max. unwinding diameter | 500mm |
| Max. rewinding diameter | 500mm |
| Slitting precision | ±0.10mm |
| Total power | JYQB320: 1.25kW | JYQB520: 2.0kW | JYQB620: 2.0kW |
| Voltage | 220V+10% |
| Dimensions (L×W×H) | JYQB320: 1200×900×1400mm | JYQB520: 1200×1100×1400mm | JYQB620: 1200×1200×1400mm |
| Weight | JYQB320: approx. 400kg | JYQB520: approx. 500kg | JYQB620: approx. 550kg |
| Variants | JYQB320, JYQB520, JYQB620 |

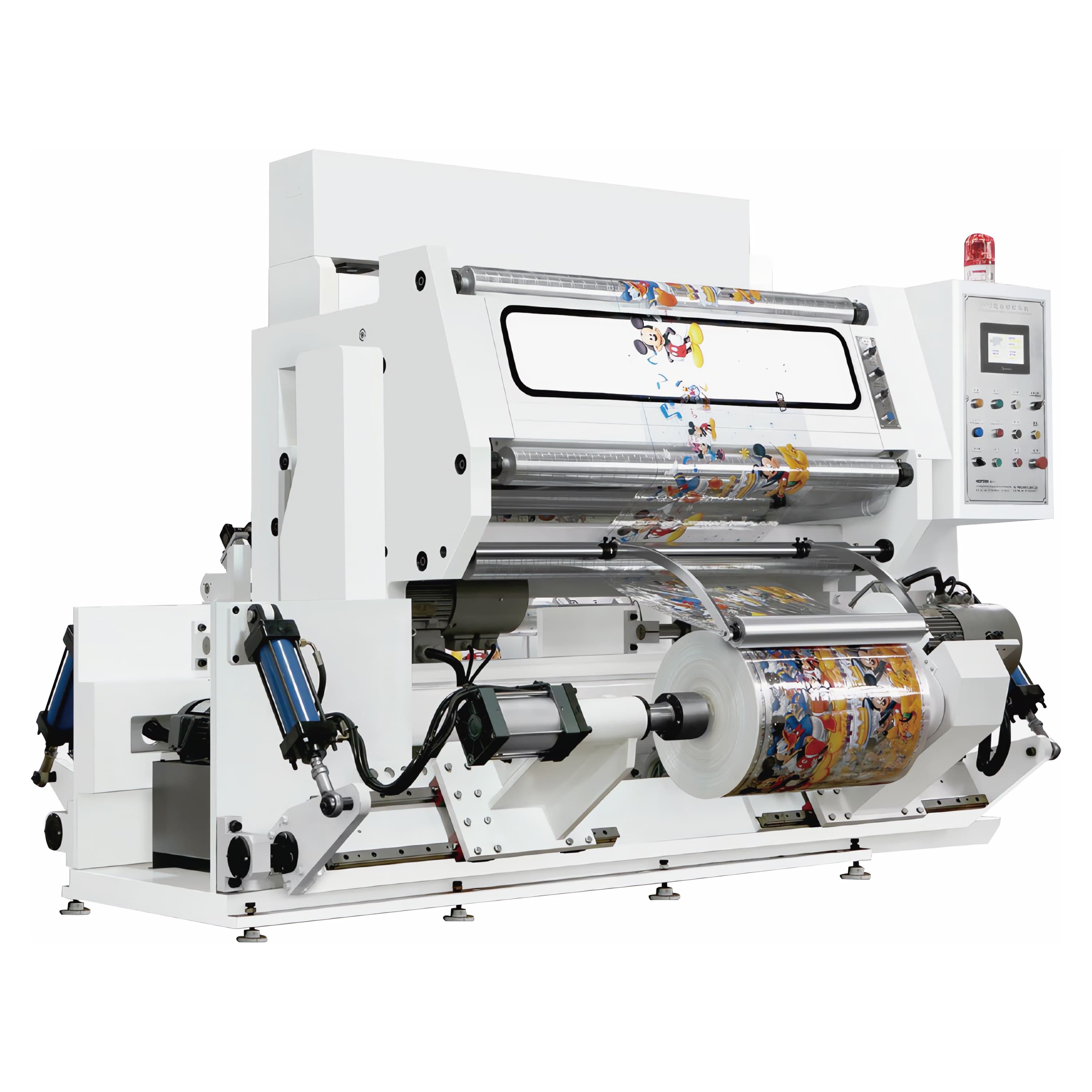

Automatic online inspection and rewinding machine for printed BOPP, PET, PVC, CPP rolls. Width 1300 mm, max inspection speed 400 m/min, unwind/rewind Φ800 mm, EPC accuracy ±0.2 mm, automatic image scanning defect detection.

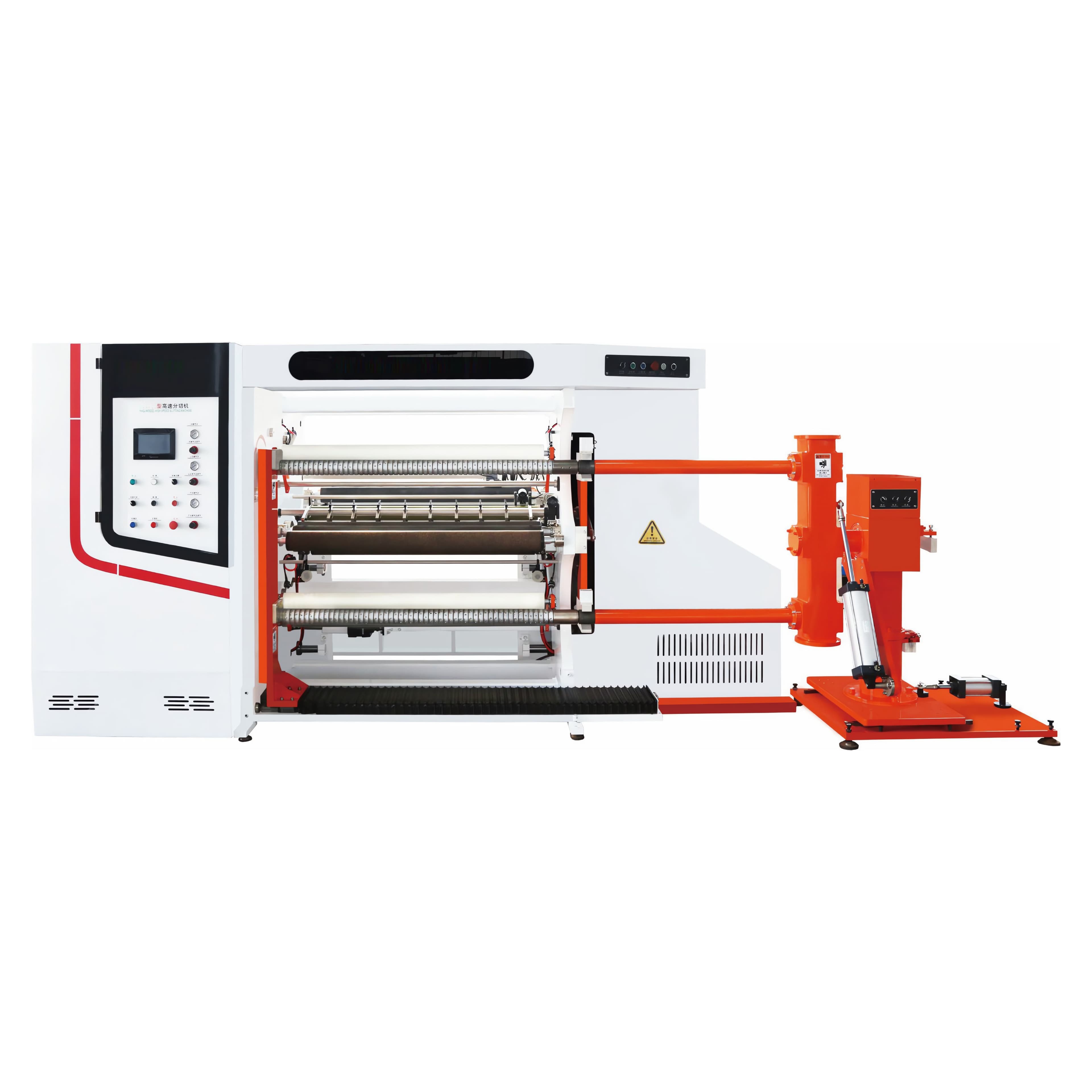

High speed slitting machine for BOPP, PET, CPP, PVC, PE and other film rolls. Width 1300 mm, max speed 600 m/min, unwind Φ800 mm, rewind Φ600 mm, min slit width 30 mm, material thickness 0.012-0.4 mm.
Surface winding type high speed slitting machine with servo motor drive. Unwinding width 600 / 1300 / 1800 mm, slitting speed 400 m/min, unwind Φ1200 mm, rewind Φ600 mm, min slit width 3-10 mm.
