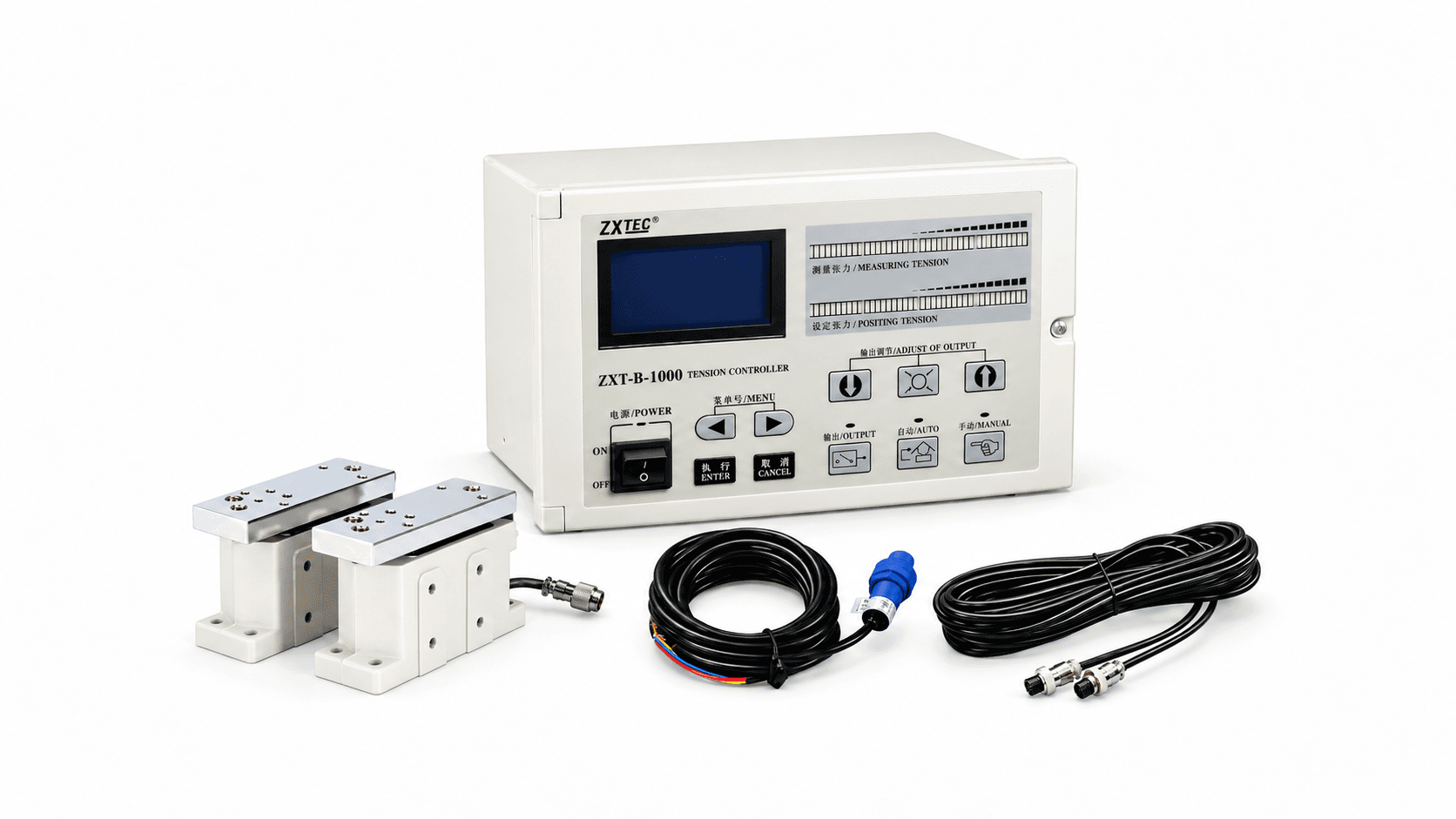

ZXT-B-1000 Automatic Constant Tension Controller

Name: ZXT-B-1000 Automatic Constant Tension Controller
Brand: Zubair Machinery Company
SKU: Auto Tension Controller

SKU Auto Tension ControllerBrand: ZXTEC

PKR 130,000

The ZXT-B full-digital, high-precision automatic constant tension controller mainly consists of a tension detector, a high-precision A ≤ D, D ≤ A converter, a high-performance single-chip microcomputer, and so on. According to the comparison between the tension of the coil measured by the tension detector and the set target tension, the automatic constant tension controller automatically adjusts the D ≤ A output by single-chip microcomputer PID operation to change the magnetic powder clutch, the excitation current of the brake, or the torque of the servo motor to realize the constant tension of the coil. It can be widely used in situations where tension needs to be accurately measured and controlled, with flexible and extensive applicability.

Confirm the machine model on your order so we match the correct revision of this part.

Quantity

Buy it Now

Description

Related parts

Full catalogue

Edge Guide Controller

GK-12 automatic photoelectric deviation Correction Controller

The GK-12 switch photoelectric deviation correction controller mainly controls the lateral deviation of a reel, so it requires a relatively low deviation-correction speed. It can correct deviations for all kinds of coils, such as reel paper, film, metal foil, non-woven cloth, and so on. Depending on the deviation-correction materials, we can choose the following edge-follow-the-line mode and freely use single- or double-electric-eye detection to meet the requirements of each material. Because the digital photoelectric switch is used for detection, and the permanent-magnet low-speed synchronous motor and ball rod are used as the drive, combined with the deviation-correction actuator, the deviation correction offers simple installation and convenient debugging.

13500

upgraded version

GK-42 Automatic Photoelectric Correction Controller

The GK-42 series photoelectric deviation correction controller offers a compact size and easy installation. It can correct deviations for all kinds of coils, such as reel paper, film, metal foil, non-woven cloth, weaving cloth, and more. Depending on the printing pattern of the rectifying material, you can choose the following edge or following line mode, freely set single- or double-eye detection, and use a permanent-magnet, low-speed synchronous motor for deviation correction. Depending on their requirements, the user can choose a ball wire rod or a standard screw, so the deviation-correction drive stroke and coil offset have a strict proportional relationship. It is mainly used in printing and packaging, papermaking, film, textile, and other industries that need to control the edge of the occasion.

20000

including manual tension control

GK-72 automatic photoelectric correction controller

The GK-72 deviation correction controller uses centralized control with an advanced single-chip microcomputer, allowing it to select a single electric eye or a double electric eye to correct deviation. The single electric eye can effectively reduce vibration and noise caused by deviation correction by adding an adjustment function for the deviation-correction response speed. The deviation-correction controller can correct deviations in paper, film, and other materials when used with a photoelectric eye and a deviation-correction actuator, and can be widely used in cutting machines. It can also be used in printing presses and other mechanical equipment.

28000
