Economic medium speed computerized rotogravure printing machine. Web width 800 / 1100 mm, max printing speed 100 m/min, cylinder diameter Φ100-350 mm, registration accuracy ±0.1 mm. Specification based on 6 colours.

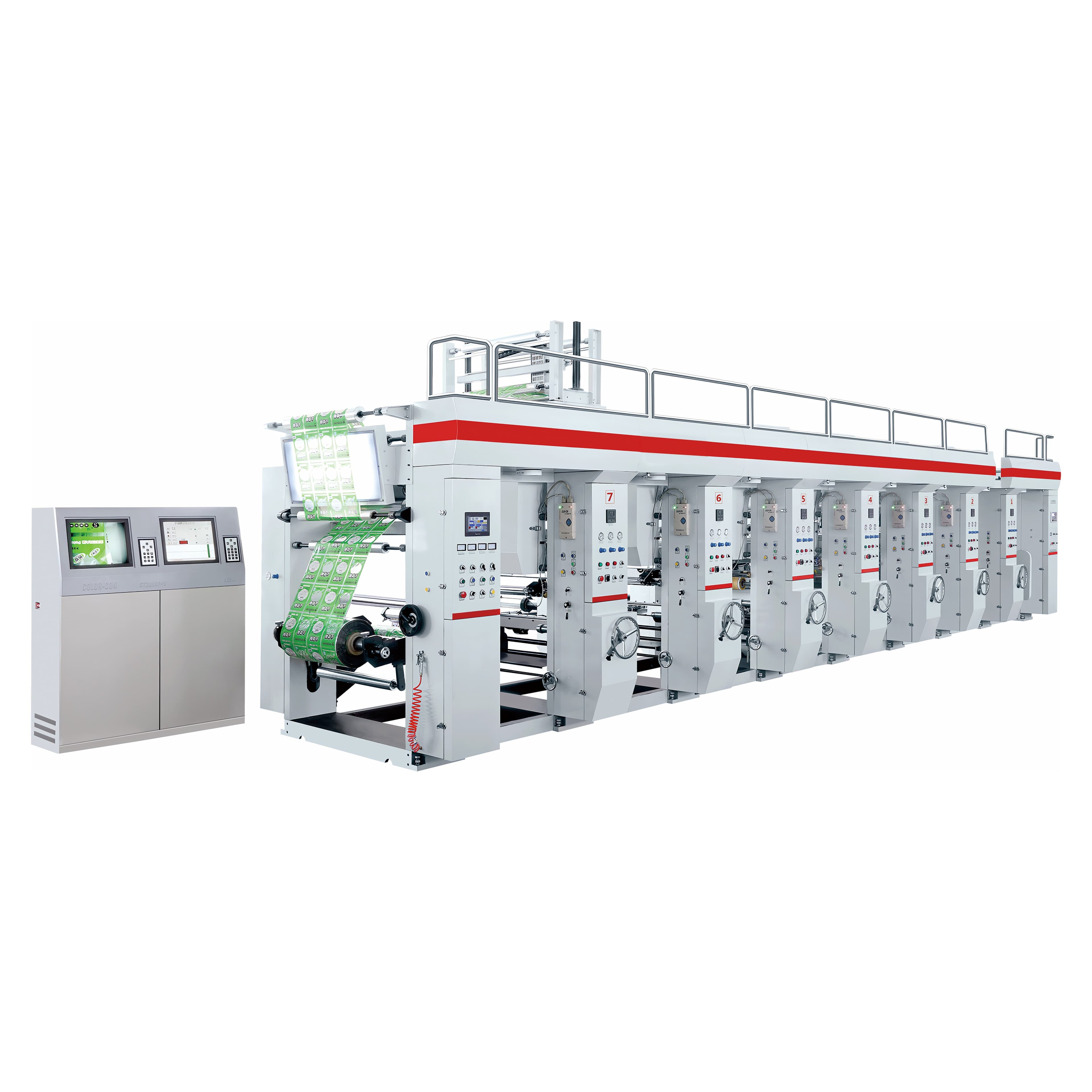

DSAY-E Economic Medium Speed Computerized Rotogravure Printing MachineEconomic medium speed computerized rotogravure printing machine. Web width 800 / 1100 mm, max printing speed 100 m/min, cylinder diameter Φ100-350 mm, registration accuracy ±0.1 mm. Specification based on 6 colours.Applicable materials: BOPP, PET, CPP, PVC, PE, nylon film, paper, cellophane and similar composite filmsTechnical parameters:Model: DSAY-E800 | DSAY-E1100Web width: 800mm | 1100mmPrinting speed: Max 100 m/min | Max 100 m/minPrinting cylinder diameter: Φ100-350mm | Φ100-350mmRoll material diameter: Φ570mm | Φ570mmCylinder horizontal adjustment: 30mm | 30mmRegistration accuracy: ±0.1mm | ±0.1mmTotal power: 135kW | 147kWWeight (approx.): 9000kg | 11000kgOverall dimensions (L×W×H): 10800×2800×2700mm | 10800×3100×2700mmSpecification is based on a 6-colour machine.Manufacturer: Wenzhou Jinyi Machinery Co., Ltd. (Brand: JINYI), Ruian, Zhejiang, China.Brand: JINYIPlace of origin: Zhejiang, ChinaKeywords: economic gravure printing machine; medium speed rotogravure printer; computerized printing machine
| Web width | DSAY-E800: 800mm | DSAY-E1100: 1100mm |
|---|---|
| Printing speed | Max 100 m/min |
| Printing cylinder diameter | Φ100-350mm |
| Roll material diameter | Φ570mm |
| Cylinder horizontal adjustment | 30mm |
| Registration accuracy | ±0.1mm |
| Total power | DSAY-E800: 135kW | DSAY-E1100: 147kW |
| Weight (approx.) | DSAY-E800: 9000kg | DSAY-E1100: 11000kg |
| Overall dimensions (L×W×H) | DSAY-E800: 10800×2800×2700mm | DSAY-E1100: 10800×3100×2700mm |
| Note | Specification is based on a 6-colour machine. |
| Variants | DSAY-E800, DSAY-E1100 |
