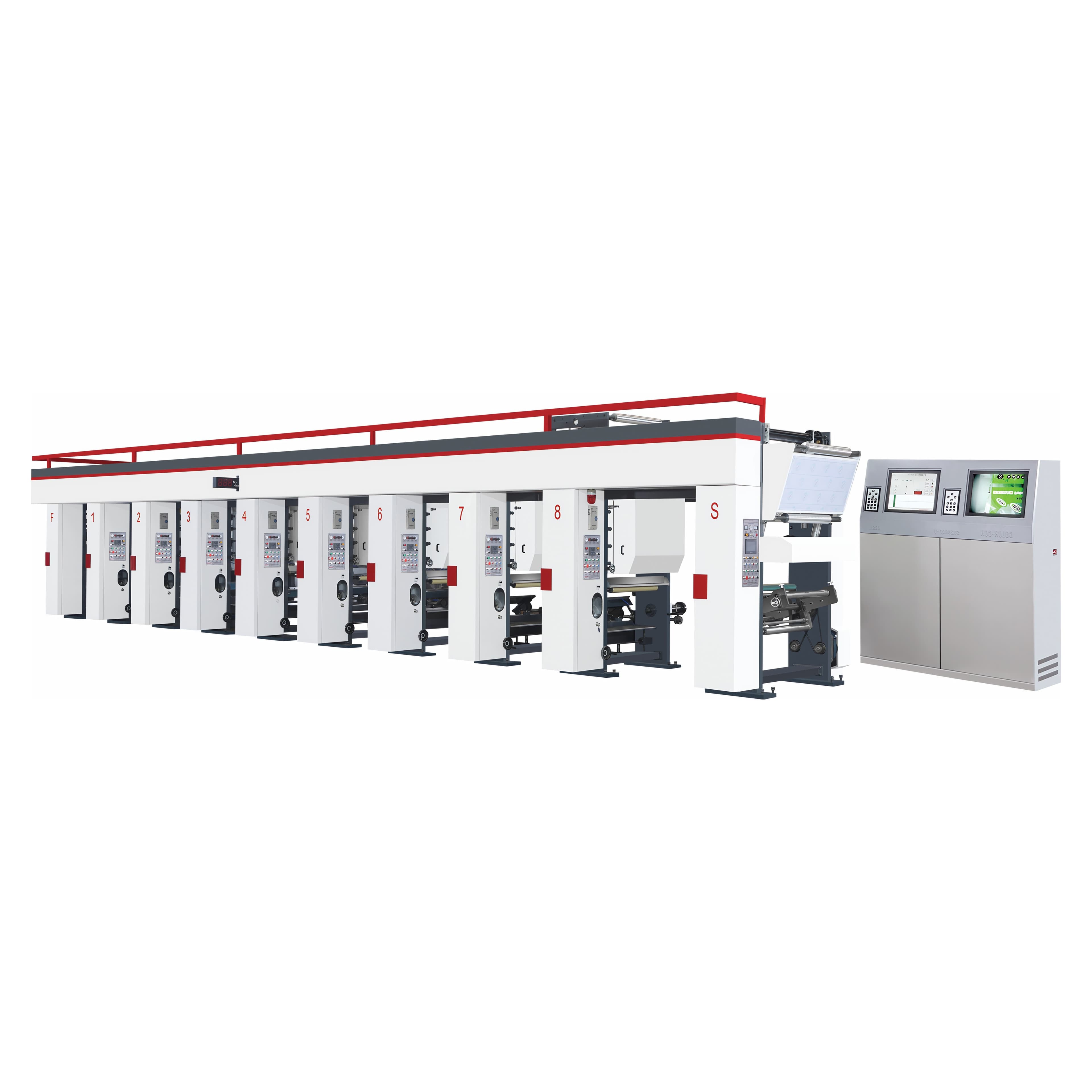

3 servo motor high speed rotogravure printing machine. Web width 800 / 1100 mm, max printing speed 160 m/min, cylinder diameter Φ100-350 mm, registration accuracy ±0.1 mm. Specification based on 8 colours.
JYAY-A 3 Servo Motor High Speed Rotogravure Printing Machine3 servo motor high speed rotogravure printing machine. Web width 800 / 1100 mm, max printing speed 160 m/min, cylinder diameter Φ100-350 mm, registration accuracy ±0.1 mm. Specification based on 8 colours.Applicable materials: BOPP, PET, CPP, PVC, PE, nylon film, paper, cellophane and similar composite filmsTechnical parameters:Model: JYAY-A850 | JYAY-A1050Web width: 800mm | 1100mmPrinting speed: Max 160 m/min | Max 160 m/minPrinting cylinder diameter: Φ100-350mm | Φ100-350mmRoll material diameter: Φ570mm | Φ570mmCylinder horizontal adjustment: 30mm | 30mmRegistration accuracy: ±0.1mm | ±0.1mmTotal power: 235kW | 248kWWeight (approx.): 18000kg | 20000kgOverall dimensions (L×W×H): 14600×3100×3000mm | 14600×3300×3000mmSpecification is based on an 8-colour machine.Manufacturer: Wenzhou Jinyi Machinery Co., Ltd. (Brand: JINYI), Ruian, Zhejiang, China.Brand: JINYIPlace of origin: Zhejiang, ChinaKeywords: 3 motor rotogravure printing machine; gravure printer; 8 color printing machine
| Web width | JYAY-A850: 800mm | JYAY-A1050: 1100mm |
|---|---|
| Printing speed | Max 160 m/min |
| Printing cylinder diameter | Φ100-350mm |
| Roll material diameter | Φ570mm |
| Cylinder horizontal adjustment | 30mm |
| Registration accuracy | ±0.1mm |
| Total power | JYAY-A850: 235kW | JYAY-A1050: 248kW |
| Weight (approx.) | JYAY-A850: 18000kg | JYAY-A1050: 20000kg |
| Overall dimensions (L×W×H) | JYAY-A850: 14600×3100×3000mm | JYAY-A1050: 14600×3300×3000mm |
| Note | Specification is based on an 8-colour machine. |
| Variants | JYAY-A850, JYAY-A1050 |

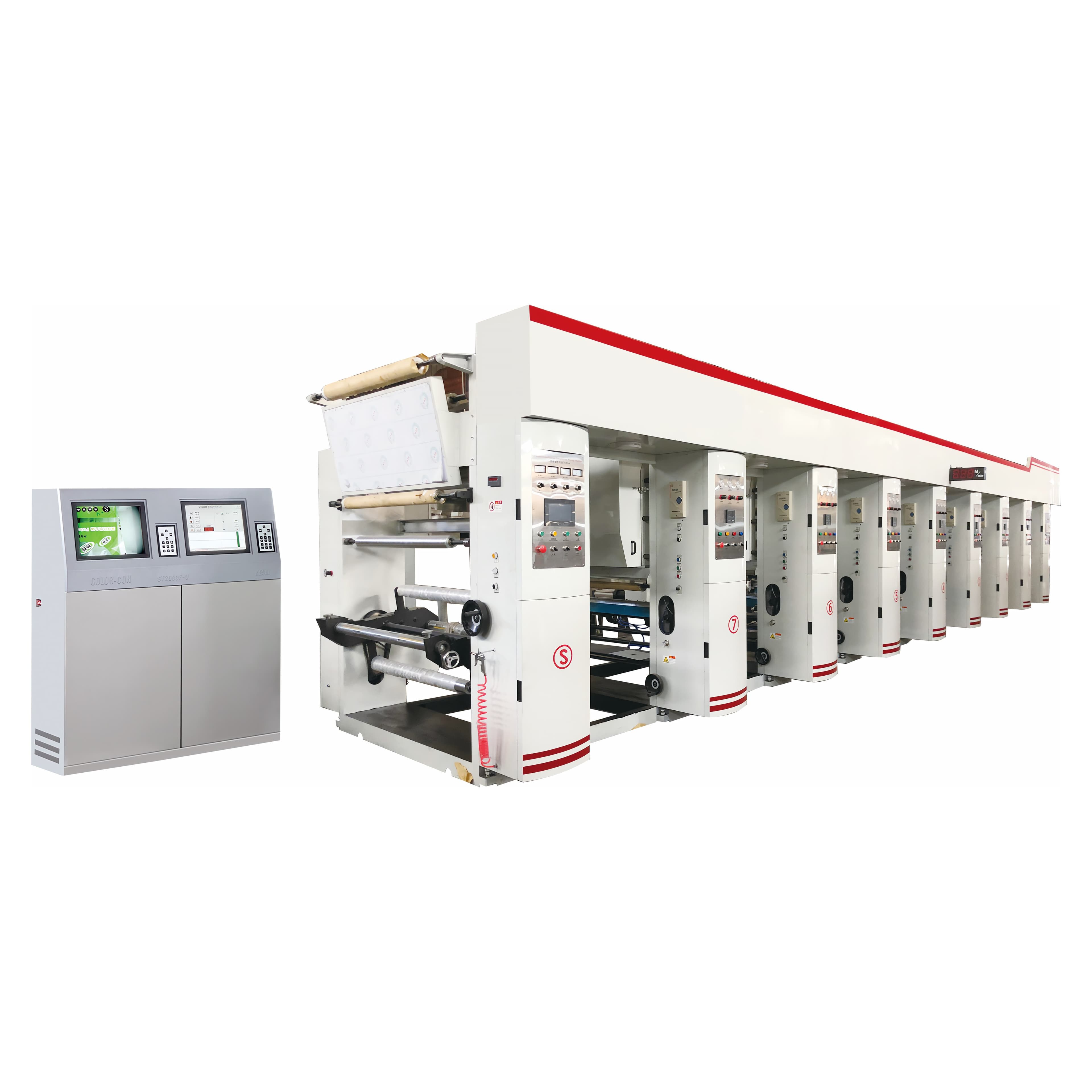

3 servo motor computerized rotogravure printing machine with computer register control console. Web width 800 / 1100 mm, max printing speed 120 m/min, cylinder diameter Φ100-350 mm, registration accuracy ±0.1 mm. Specification based on 6 colours.

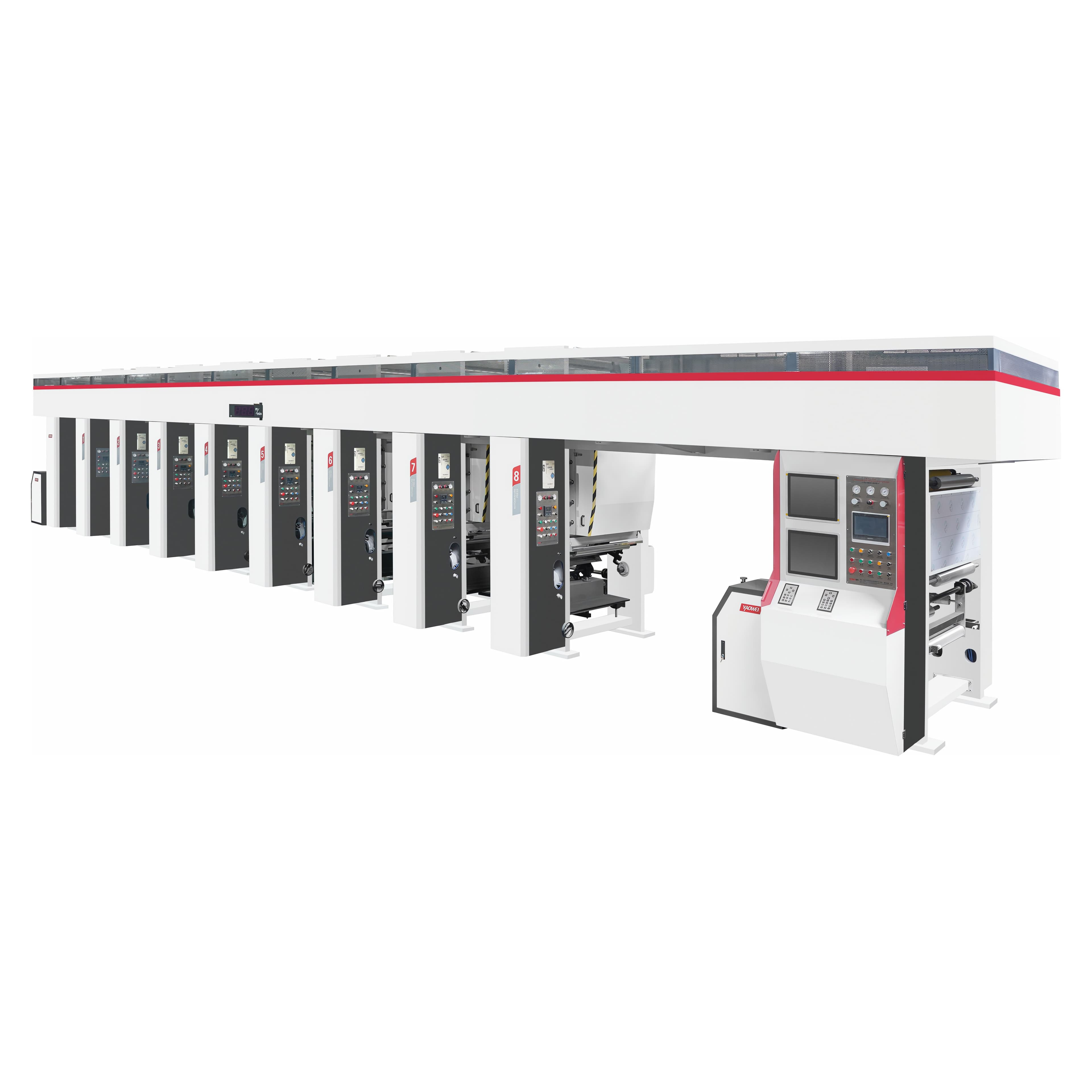

7 servo motor high speed rotogravure printing machine. Web width 800 / 1000 mm, max printing speed 200 m/min, cylinder diameter Φ120-300 mm, registration accuracy ±0.1 mm. Specification based on 8 colours.

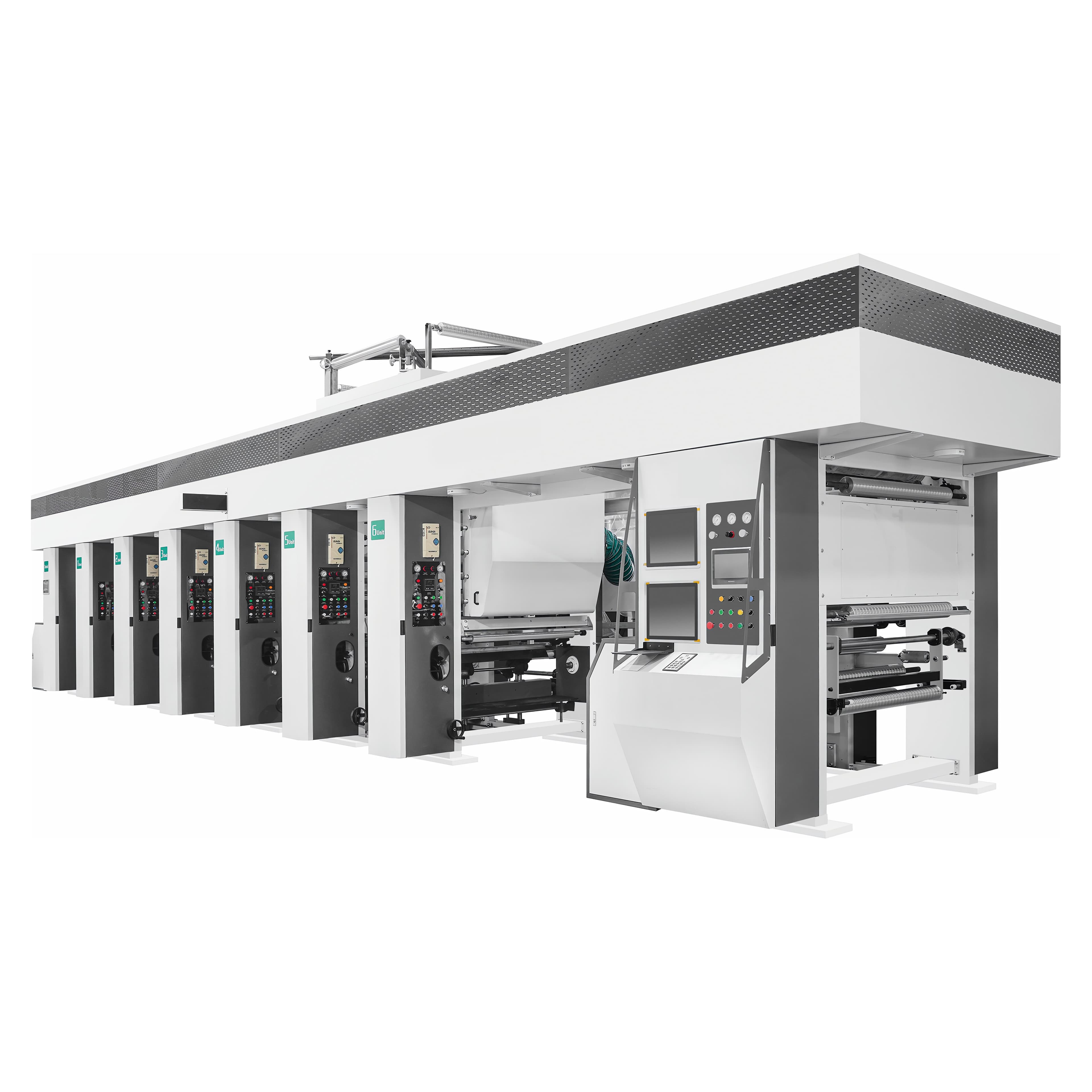

7 servo motor rotogravure printing machine. Web width 800 / 1000 mm, max printing speed 160 m/min, cylinder diameter Φ100-350 mm, registration accuracy ±0.1 mm. Specification based on 8 colours.
